DS90UB953TRHBRQ1
Manufacturer:
Texas Instruments
Mfr.Part #:
DS90UB953TRHBRQ1
Datasheet:
Description:

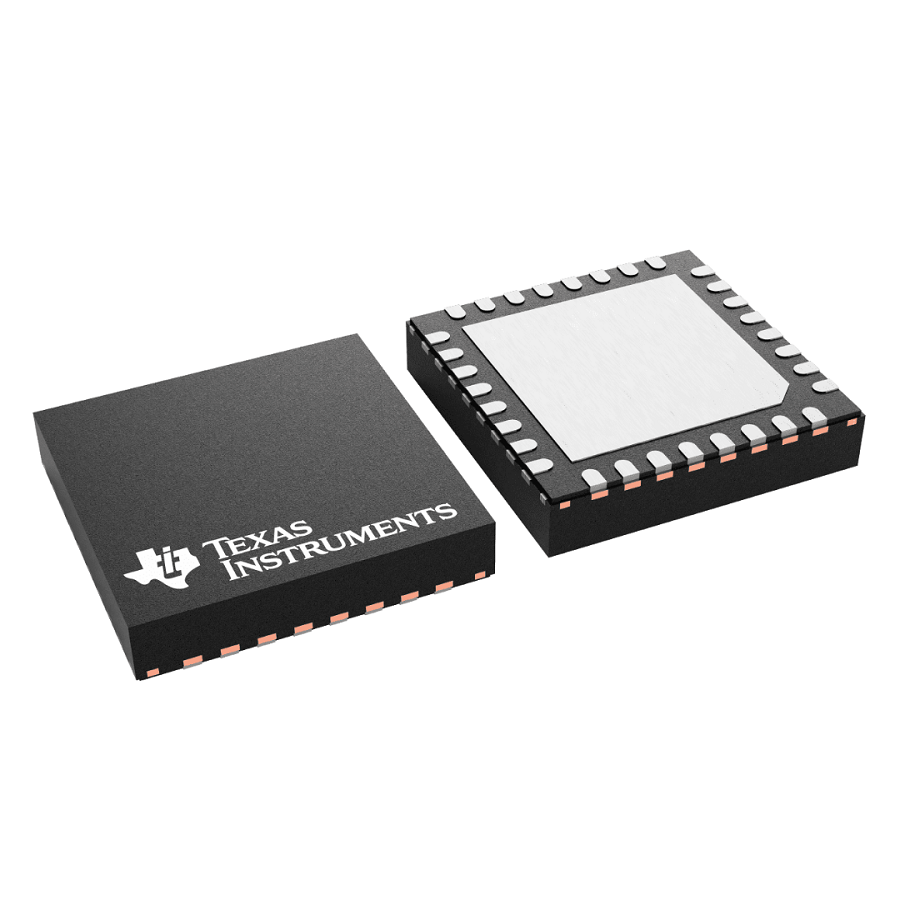

Interface ICs VQFN-32 SMD/SMT I²C 4.16 Gbps
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 32 |
| Height | 1 mm |
| Packaging | Reel |
| Thickness | 0.9 mm |
| RoHS | Compliant |
| Interface | I²C |
| Max Supply Voltage | 1.89 V |
| Min Supply Voltage | 1.71 V |
| Ambient Temperature Range High | 105 °C |
| Number of Inputs | 4 |
| Data Rate | 4.16 Gbps |
| Number of Outputs | 1 |
| Nominal Supply Current | 160 mA |
| Max Junction Temperature (Tj) | 150 °C |
| Schedule B | 8542390000 |
Stock: 585
Distributors
pcbx
pcbxUnit Price$4.91971
Ext.Price$4.91971
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.91971 | $4.91971 |
| 10 | $4.20614 | $42.06140 |
| 25 | $3.81624 | $95.40600 |
| 50 | $3.46248 | $173.12400 |
| 100 | $3.14154 | $314.15400 |
| 300 | $3.03959 | $911.87700 |
| 500 | $2.94094 | $1470.47000 |
| 1000 | $2.85064 | $2850.64000 |
